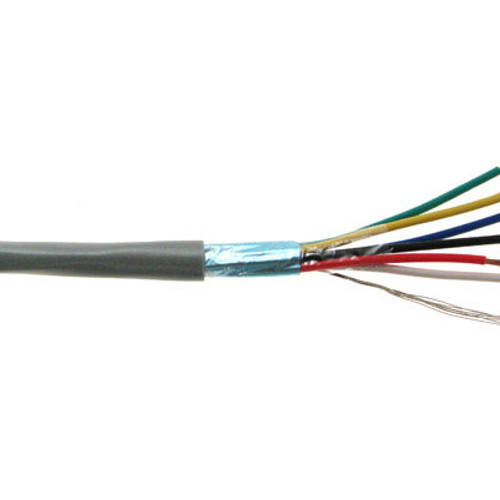

Stranded Shielded PVC 6C/22 AWG with Drain - 312-102SH

$185.00
(No reviews yet) Write a Review
SKU:
312-102SH
Stranded Shielded PVC 6C/22 AWG with Drain - 312-102SH

6C/22 AWG STRANDED SHIELDED w/DRAIN, PVC- GRAY- 1000 FT BOX

Features:

  • Multi-Conductor shielded insulated stranded bare copper conductors, twisted with overall AL mylar shielding (with drain) and sunlight resistant PVC jacket. Ripcord and sequential foot markings printed on jacket.
  • CMR/FPLR/CL2R/CL3R/CMG/FT4
  • 22-16 AWG: NEC FPLR/760, CMR/800, CL3, CL2R/725
  • 14-12 AWG: FPLR, CL3R
  • ETL, c(ETL), RoHS, CE

Applications:

  • Security Systems, Intercom Systems, Sound/Audio Systems, Power-Limited Controls. Cables are manufactured to meet current NEC guidelines and are verified by outside standards organizations including c(UL)us and c(ETL)us.

Literature:

  Stranded Shielded PVC 6C/22 AWG with Drain - 312-102SH datasheet
